If you’re sourcing precision parts from India using custom CNC machining services, here’s a heads-up: the biggest decision you’ll make isn’t just about picking the right supplier – it’s choosing the right kind of machining.
3-axis vs. 5-axis? It’s also a strategic call that can make or break your product in terms of quality, cost, and delivery timelines. It’s easy to get lost here. Many buyers end up going with what sounds impressive, or they cut corners, thinking all machining is the same.
The result? You either overspend on features you don’t need, or you get stuck with parts that don’t perform. This guide is here to make choosing between custom CNC machining services simpler.
The Technical Foundation: How These Systems Actually Work
1. 3-Axis Machining: The Workhorse Approach

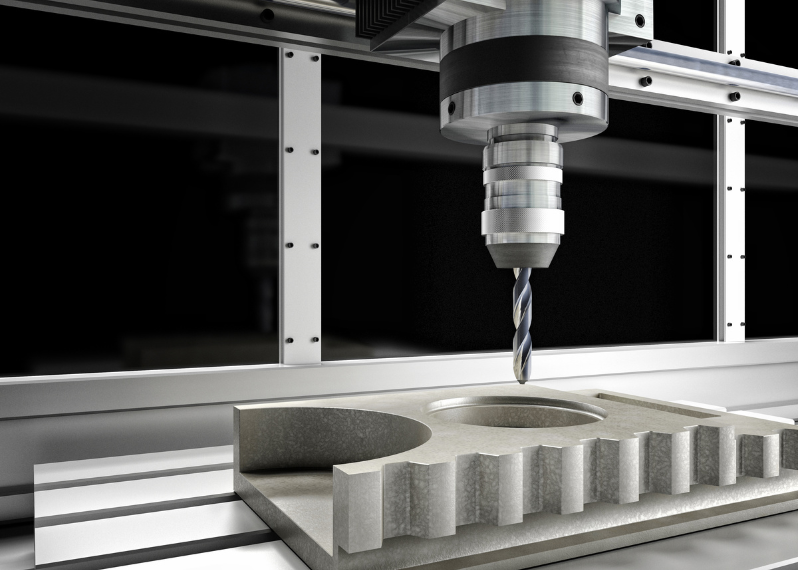

As the name suggests, 3 axis machining is a highly precise drill that moves in three directions: X (left to right), Y (front to back), and Z (up and down). Throughout the entire process, the cutting tool retains a consistent angular position relative to the workpiece.
Key Characteristics:
- Linear movement along three perpendicular axes
- Tool orientation remains constant
- Requires multiple setups for complex geometries
- Excels at planar surfaces and simple contours
2. 5-Axis Machining: The Precision Artist
5-axis systems add two rotational axes (A and B) to the standard three linear movements. This allows the cutting tool to approach the workpiece from virtually any angle, enabling complex geometries in a single setup.
Key Characteristics:
- Five simultaneous movements (3 linear + 2 rotational)
- Variable tool orientation
- Single-setup capability for complex parts
- Superior surface finish on intricate geometries
3-Axis vs 5-Axis Selection Criteria
When 3-Axis Is Your Best Choice
| Scenario | 3-Axis Fit | Cost Impact |
| Simple geometries | Parts with primarily planar features | 40-60% cost savings |
| High-volume production | Faster cycle times for straightforward parts | 25-35% efficiency gain |
| Budget-sensitive projects | Lower equipment and setup costs | 50-70% total cost reduction |
| Prototyping | Quick iterations without complex fixturing | 3-5x faster turnaround |
Industries Where 3-Axis Excels:
- General machinery components
- Agricultural equipment parts
- Simple automotive brackets
- Industrial fixtures and jigs
When 5-Axis Becomes Essential
| Scenario | 5-Axis Fit | Quality Impact |
| Complex geometries | Undercuts, angled holes, compound curves | 90%+ feature completion in a single setup |
| Tight tolerances | ±0.001″ or better across multiple surfaces | 80% reduction in tolerance stack-up |
| Superior surface finish | Ra 0.8 µm or better required | 3-5x improvement in surface quality |
| Minimal post-processing | Parts requiring immediate assembly | 70% reduction in secondary operations |
Industries Where 5-Axis Is Non-Negotiable:
- Aerospace turbine components
- Medical implants and surgical instruments
- Energy sector pump impellers
- Defense precision components
Technical Capability Comparison
Machining Envelope & Precision
| Parameter | 3-Axis Capability | 5-Axis Capability |
| Typical Tolerance | ±0.005″ (±0.13mm) | ±0.0005″ (±0.013mm) |
| Surface Finish | Ra 1.6-3.2 µm | Ra 0.2-0.8 µm |
| Feature Accessibility | 60-70% in a single setup | 95-98% in a single setup |
| Setup Reduction | Multiple setups required | Single setup for most parts |
| Tool Life | Standard | 20-30% longer due to optimal cutting angles |
India CNC Machining: Advantage by the Numbers
Certification Landscape
India’s custom CNC machining services sector has achieved significant quality milestones:
- 1,200+ ISO 9001-certified facilities
- 300+ AS9100 aerospace-certified shops
- 150+ FDA-compliant medical device manufacturers
- 85% of tier-1 suppliers maintain multiple international certifications
(Source: Indian Machine Tool Manufacturers Association (IMTMA) 2024)
Industry-Specific CNC Machining Services Recommendations
| Industry | Use Case | Machining Type / Note |
| Aerospace & Defense | Standard approach | 5-axis for critical components |
| Cost consideration | 3-axis for non-critical brackets & fixtures | |
| Quality imperative | AS9100 certification mandatory | |
| Medical Devices | Implants | 5-axis required for biocompatible surfaces |
| Surgical instruments | 5-axis for complex geometries | |
| Housings | 3-axis sufficient for simple enclosures | |
| Energy Sector | Turbine components | 5-axis for aerodynamic surfaces |
| Pump parts | 5-axis for impellers, 3-axis for housings | |
| Structural components | 3-axis for brackets & supports | |
| Automotive | Engine components | 5-axis for complex internal geometries |
| Transmission parts | Mixed approach based on part complexity | |
| Chassis components | 3-axis for most applications |
Key Takeaways: Decision Framework Summary
1. Cost-Complexity Relationship
The crossover points where 5-axis custom CNC machining services become cost-effective:
- Part complexity requires 3+ setups on 3-axis equipment
- Secondary operations exceed 30% of total machining time
- Tolerance requirements approach ±0.002″ across multiple surfaces
2. Quality Impact Assessment
| Quality Metric | 3-Axis Impact | 5-Axis Impact |
| Setup accuracy | ±0.002″ per setup | ±0.0005″ single setup |
| Surface finish consistency | Variable across setups | Uniform across part |
| Feature-to-feature accuracy | Cumulative error | Minimal error accumulation |
3. Total Cost of Ownership
Beyond initial custom CNC machining services costs, consider:
- Inspection time: 5-axis reduces measurement complexity
- Post-processing: Single-setup machining minimizes finishing
- Assembly fit: Better part-to-part consistency reduces assembly time
- Rework risk: Fewer setups mean fewer opportunities for error
rivexa’s CNC Network: Your Strategic Advantage
1. Comprehensive Capability Assessment
When you work with rivexa, you’re not just accessing machines—you’re accessing expertise. Our network evaluation includes:
Technical Capabilities:
- Machine tool specifications and condition
- Tooling and fixturing capabilities
- Measurement and inspection equipment
- Process control systems
Quality Systems:
- Certification status and maintenance
- Statistical process control implementation
- Traceability systems
- Continuous improvement programs
Operational Excellence:
- On-time delivery performance
- Capacity planning and flexibility
- Supply chain management
- Communication protocols
2. Network Performance Metrics
| Performance Indicator | Network Average | Industry Benchmark |
| On-time delivery | 94.2% | 87.5% |
| First-pass quality | 98.1% | 92.3% |
| Lead time accuracy | ±2 days | ±5 days |
| Cost estimate accuracy | ±3% | ±8% |
Making Your Decision
1. Technical Assessment
- Part complexity analysis: Feature count, geometric complexity
- Tolerance requirements: Critical dimensions and surface finish
- Material considerations: Machinability and special requirements
2. Economic Evaluation
- Volume projections: Short-term and long-term requirements
- Total cost analysis: Include setup, inspection, and post-processing
- Risk assessment: Potential for design changes and iterations
3. Strategic Alignment
- Supplier capability: Current and future technology needs
- Quality requirements: Certification and documentation needs
- Timeline constraints: Project schedules and market windows
Custom CNC Machining Services: From Analysis to Action
Understanding the manufacturing potential that 3 axis and 5 axis machining has to offer is best way to explain to your custom CNC machining services provider. Ready to optimize your custom CNC machining services sourcing strategy?
- Assess your current parts portfolio using our decision framework
- Identify optimization opportunities in your existing supply chain
- Connect with verified, certified custom CNC machining services suppliers through rivexa’s network
Your technical requirements deserve suppliers who understand both the capabilities and limitations of different machining approaches. Let’s ensure your next custom CNC machining services decision is based on engineering reality, not assumptions.
Source your next custom CNC machining services with confidence. Contact rivexa today for a comprehensive assessment of your CNC machining requirements and access to India’s most qualified manufacturing network.
